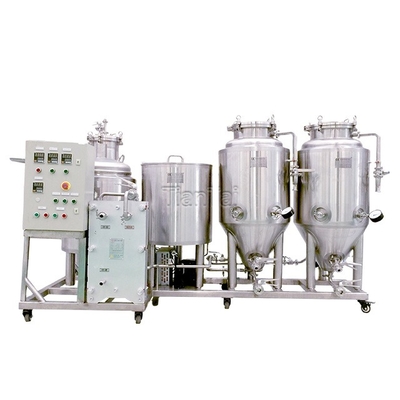

This skid home brewing system is designed for craft brewing amateurs who has been experienced in simple home brewing.
This system includes all functions which a microbrewery system standardly have.
Whole mashing procedure happens in one tank with a filter drum inside.
Two fermentation tanks are all insulated and jacketed with temperature controller for each.
The glycol cooling system has one small ice water tank and a mini refrigerator.
All the system seats on a skid with heavy wheels. It is very easily movable.
This integreted brewing system is able to take on most of the real brewing in a micro brewery.
It is suitable for some enthusiastic brewing fans or family party or some brewery labs.
1x 100L mash/lauter boiling whirlpool combined tank
1x one plate heat exchanger for wort cooling
1x centrifugal type wort pump
2x 100L fermentation tank with cooling jacket and insulation
1x glycol water tank with refrigerator for cooling fermentation tanks
1x controlling panel for all flow and temperature control, digital panel or plc optional
All tanks interior shell 2mm, cladding shell 1.5mm, SUS304.
Details:
Features:
| Material | 304/316 Stainless Steel/Copper |
| Welding | 100% TIG automatically welding with pure argon gas shield |
| Interior shell | Stainless Steel, Thickness:3mm |
| Exterior shell | Stainless Steel, Thickness:2mm |
| Insulation | TH=80mm with low thermal conductivity PU |
| Cooling | 35% Glycol liquid -5℃ |
| Cooling jacket | Dimple plate on bottom and side wall |
| Jacket working pressure | <2bar/30psi |
\
