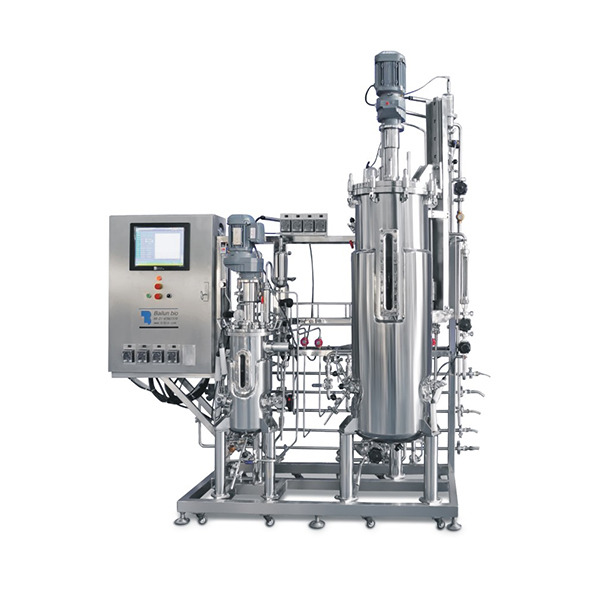

Multistage stainless steel fermenter, industrial fermentor,bacteria fermentor
Pilot fermentation tank stainless steel fermentation tank use for test project of yeast, enzymes, microorganisms such as fungi and bacteria culture test.
Application
Pilot fermentation tank stainless steel fermentation tank is made by stainless steel. Equipment exquisite, beautiful imported equipment can be rivaled. Three major components 1. tank, 2.piping and 3.control system. Tank is SUS316L stainless,jacket is made by SUS304. Stainless steel polished precision Ra≤0.4 inside, Ra≤0.6 outside, equipment design, manufacture in accordance with GMP standards.
pilot fermentation tank stainless steel fermentation tank,animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine
|
Model |
SPF10L-500L |
|
Size |
10L,15L,20L,30L,50L,70L,100L,200L,300L,500Letc. feeding volume:70% |
|
Combination1 |
Two arbitrary different specifications can be composed of a second fermentation tanks fermentation system |
|
Combination2 |
Compose a multi fermentation system by any sames specifications tanks. |
|
Tank |
Diameter:Hight ratio 1:2to3, Tank made by SUS316L stainless steel. Jacket is SUS304 stainless steel. |
|
Stir |
Mechanical seal, top mechanical agitation / magnetic stirring. Two straight blade impeller, a mechanical defoaming paddle, four baffle plates |
|
Inoculation |
Flame protection act, vaccination pressure method |
|
Gas inlet |
Rotameter + sterile filter + air distributor |
|
Exhaust |
Stainless steel exhaust condenser |
Control parameters
|
Speed control |
Intelligent automatic PID control, pulse width modulation rare earth DC motor + gearbox, stirring speed: 50-1000rpm, variable speed, accuracy ± 5 ‰ |
|
DO control |
PID intelligent automatic control, imported Swiss electrodes and cables, measuring range: 0-150%, control accuracy: ± 3%. Resolution 0.1%, according to the fermentation process controlled by fermentation time sequence(DO automatic variable control, multi-segment), can associated control with speed, air flow, pressure, feeding and other parameters |
|
PH control |
Intelligent PID automatic control, imported Swiss electrodes and cables, two peristaltic pumps. Display range: 0.00 to 14.00 ± 0.01, control range: 2.00 to 12.00 ± 0.02. Online detection, automatic alarm, automatically add acid/alkali solution by peristaltic pump pH value curve analysis, acid/alkali volume curve analysis, quantitative analysis batch report, The cumulative amount of acid/alkali added display records, Control the fermentation process by fermentation time sequence (pH automatic variable controller, multi-segment) |
|
Temperature control |
Intelligent PID automatic control, thermostatic bath + PT100 temperature sensor + electric heating + solenoid valve range; cooling water temperature +3 -60 ℃, accuracy of ± 0.2 ℃, 0.1 ℃ resolution |
|
Feeding control |
Air ratio control switch can be set to 1-100%, automatic flow and measured. Supplement feeding amount curve analysis, the amount accumulated, display records, save of batch reports analyze. Control the fermentation process segment by fermentation time sequence(automatic feeding variables, multi-segment) . Dedicated pins and needles feeding sets, to ensure safe operation of feeding. |
|
Defoaming control |
Intelligent PID automatic control, electrode detection, adding defoamer by peristaltic pump, sensitivity 100-100000Ω, can supplement quantitative and timing. |
|
Ventilation |
Manual adjustment, the flow meter measure, ventilation 1: 1-2VVM |
|
Pressure |
Manual adjustment, pressure gauge measure ,the range 0-0.2MPa |
|
Sterilization |
Manual adjustment, the program assisted sterilization, sterilization reign / off-site. |
|
Control system |
Based on the German scene controller S7-200 Siemens programmable logic controller series as the core. Imported 5.7 "true color touch screen. Independent control software, matte stainless steel control cabinet. Data processing can be performed and the curve displayed Data A / D or D / A conversion, data capture to display, each control loop tuning PID operation and setpoint control, timing control and host communications. |
|
Exhaust |
Stainless steel exhaust condenser exhaust |
Optional Parameters
|
Function |
PC remote control Automatic sterilization Exhaust O2, CO2 detection Oxidation-reduction detection Automatic ventilation Automatic tank pressure Tank Weighing Feeding Weighing Online precisely calculated important parameters OUR, CER, RQ, KLα, etc.,which indirectly reflect the changes in cell metabolism stream. |
|
Product |
Size |
|
Desktop glass fermentation tank |
3L, 5L, 7L, 10L |
|
Desktop stainless steel fermentation tank |
3L, 5L, 7L, 10L |
|
Small scale pilot fermentation tank |
10L, 15L, 20L, 30L, 50L, 70L, 100L, 200L, 300L, 500L |
|
Two-union stainless steel fermentation tank |
10L, 15L, 20L, 30L, 50L, 70L, 100L |
|
Plant cell culture tank |
3L, 5L, 7L, 10L |
|
Animal cell culture tank |
3L, 5L, 7L, 10L |
|
Fermentation Engineering |
1ton-100ton |
pilot fermentation tank,stainless steel fermentation tank,animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine
Successful cases
pilot fermentation tank,stainless steel fermentation tank, animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine
Q: What’s your MOQ?
A: 1 unit
Q: Do you accept special order?
A: Yes, we do and keep secret.
Q: Can you make a design for us?
A: Yes.
Q: Do you provide after sales service?
A: Yes.
Q: Have warranty or not?
A: Yes, 1 year international warranty.
Q: Can you guide for installation and come to installation place?
A: Yes.
How to Place an Order ?
Step1 : Getting inquiry
Step2 : Design based on details provided
Step3 : Confirmation design layout
Step4 : Make quotation
Step5 : Quotation confirmation
Step6 : Shipping notice
Step7 : Getting the freight and balance
Step8 : Shipment
Step9 : After-sale service
pilot fermentation tank ,stainless steel fermentation tank, animal cell culture tank, desktop glass fermentation tank, plant cell culture tank laboratory fermenter, mini lab fermentation, bioreactor, bio fermentation,yeast,enzymes,microorganisms fermenting vessel, fermentor,small scale fermentation tank,pilot fermentation, industries fermentation, beer fermentation tanks, fermentation pot, fermentation reactor, glass fermentation jar, wine fermentation tank , stainless steel fermenter, fermenter tank, fermenter machine
Our Advantages:
